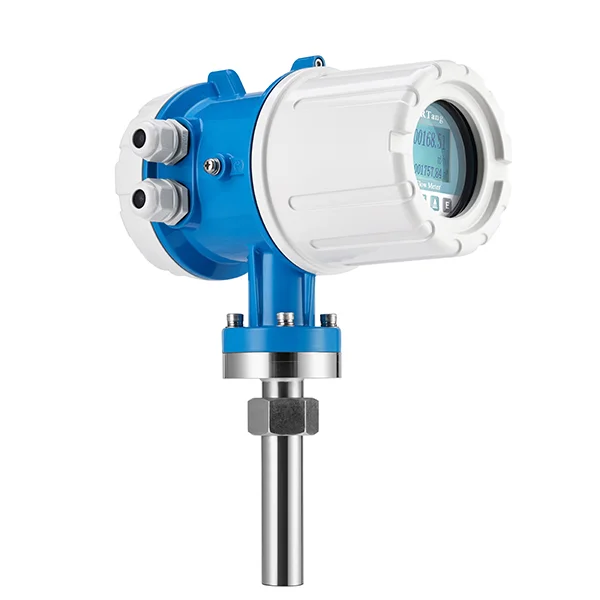

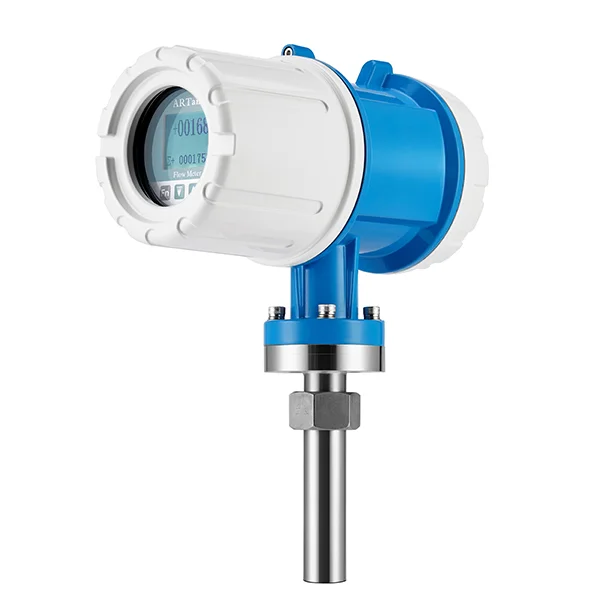

Insertion Electromagnetic Flow Meter

The insertion electromagnetic flow meter retains the advantages of the pipeline electromagnetic flowmeter and proposes a highly reliable external installation solution to address its defects such as difficulty in large pipeline installation and high cost. Sensor installation and maintenance without dismantling the measuring pipe and can be installed in the old pipeline on-site openings, more suitable for the site can not stop the use of water.

Nominal Diameter: DN25~DN3000

Accuracy: ±1%/±2%

Nominal Pressure: 1.6MPa

Electrode: SUS316L, Customize

Probe: ABS, Polyurethane

Product Details

Insertion Electromagnetic Flow Meter

Compared with the general electromagnetic flowmeter manufacturing cost is low, installation and maintenance costs are also very low, especially for the larger diameter of the site;
The use of insertion type structure can be in low pressure or under pressure without stopping water installation, disassembly, at the same time very suitable for existing pipeline fluid measurement and easy maintenance and repair of the instrument.
High accuracy: insertion electromagnetic flowmeter accuracy is in 1% or 1.5%; pipe electromagnetic flowmeter accuracy is ±0.2%, ±0.5%. 4. not subject to fluid density, temperature and temperature.
Not affected by changes in fluid density, temperature, pressure, viscosity and conductivity, which ensures the accuracy and stability of its measurement.
Simple structure, no moving parts, no pressure loss, low maintenance cost.
Adopts advanced low-frequency square wave excitation technology, featuring stable zero point, strong anti-interference ability and high reliability.

Technical Parameters

Model Number	Aimag I
Nominal Diameter	DN25~DN3000
Accuracy	±1% / ±2%
Electrode Material	Stainless Steel 316L; Hastelloy B; Hastelloy C; Platinum; Tantalum; Titanium
Liner Material	PTFE; Neoprene; Hard Rubber; Polyurethane; PFA; FEP
Ambient Temperature	-20°C~60°C, with display
Ambient Temperature	-40°C~60°C, without display
Process temperature	0°C~80°C, Neoprene
	-20°C~65°C, Polyurethane
	-40°C~130°C, PTFE
	-20°C~150°C, PFA
	-20°C~180°C, PFA high temperature
Measuring Range	0.1m/s~12m/s
Conductivity	≥2us/cm
Communication	Modbus RS485(Standard), HART(Optional), GPRS/GSM (Optional)
Output Signal	4~20mA / Frequency / Pulse
Explosion Certification	NEPSI Ex db eb ia IIC T3…T6 Gb
Certification	ISO, EAC, 3A, CE, SIL
Protection Grade	IP67 / IP68(optional)

Insertion types electromagnetic flowmeter and pipe section electromagnetic flowmeter have their own advantages and disadvantages, choose which type of flowmeter should be based on specific measurement needs and working conditions to decide. In practical applications, can be based on the specific circumstances of the selection and configuration, in order to achieve the best measurement results.
