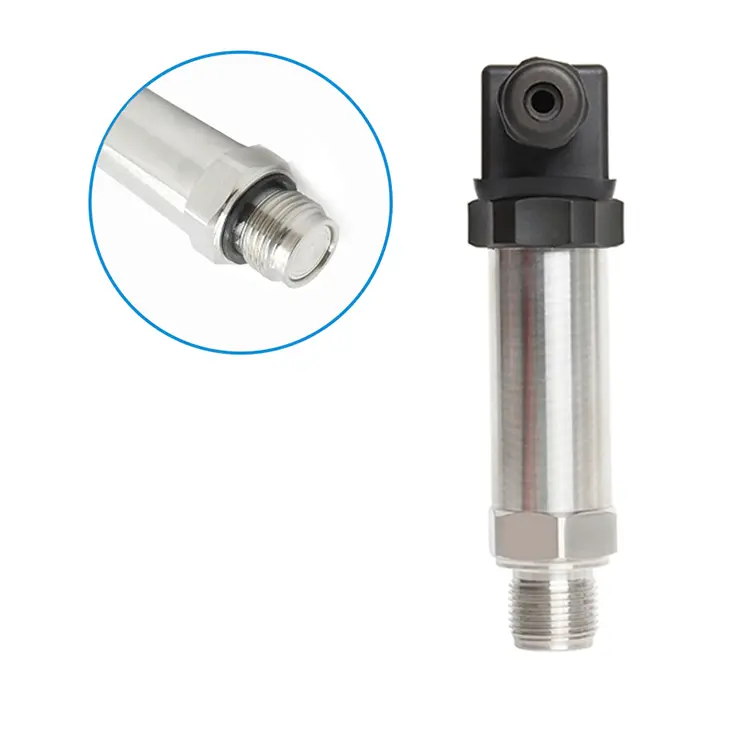

The AE11 pressure transmitter utilizes a diffusion silicon core. stainless steel body SS304/SS316L and SS316L, Hastelloy C, Tantalum diaphragm, can work in the non-causticity environment.
Pressure type: Gauge pressure, absolute pressure
Accuracy: ±0.5%; ±0.2%
Measuring range: 0-7KPa….0-70MPa
Ingress protection: IP65

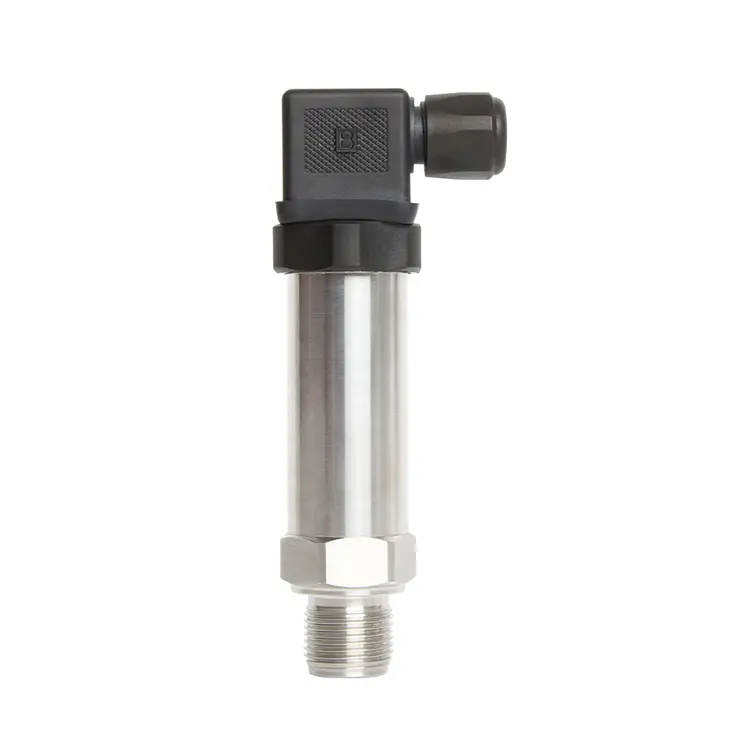

The hydraulic pressure transducer adopts internationally advanced imported ceramic piezoresistive sensors or diffused silicon sensors, which are automatically tested by computers and compensated for zero point and temperature performance in a wide temperature range using laser adjustment process. It has strong load protection and long-term stability. Each of our hydraulic pressure transducer must be 100% tested by the fully automated measurement and calibration system to ensure its high quality. It has a compact structure, is easy to install, and is not limited by space. It is suitable for the detection of gauge pressure, absolute pressure and liquid level of corrosive media in various industrial fields.
| Model Number | AE 11 |
| Measuring Range | 0-7KPa….0-70MPa |
| Measurement Medium | Gas or liquid compatible with 316 stainless steel |
| Accuracy | ±0.5%; ±0.2% |
| Overpressure limit | Max140 Mpa |
| Power supply | 10~32VDC |
| Output | 4~20mA, 4~20mA+HART,MODBUS RS485 |
| Process temperature | -40~100°C |
| Ambient temperature | -40~85°C |
| Working temperature | -20~70°C |
| Storage humidity | ≤95%RH |
| Long-term stability | ≤±0.2% |
| Temperature drift | ≤±0.2%F.S/10°C |
| Response time | 0.25s |
| Protection level | IP65/IP67 |
| Casing and process connection material | 304/316L stainless steel |
| Diaphragm material | SUS316L/Hastelloy C/Tantalum |
| Liquid contact seal material | Nitrile rubber |
