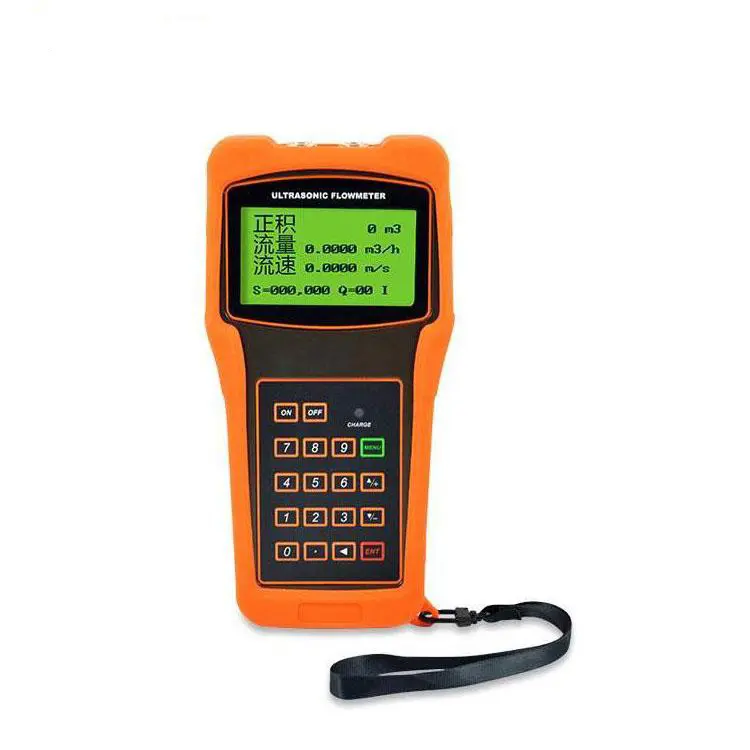

Handheld Ultrasonic Flow Meter

Handheld ultrasonic flow meters are portable, non-invasive devices for quick, accurate liquid flow measurements in diverse applications.

Pipe diameter: DN15-DN6000mm

Accuracy: ±1.0%

Case material: ABS

DeliveryTime:7-10 working days

MOQ: 1 PCS

Protection class: IP68

Product Details

Technical Parameters

Product	Handheld ultrasonic flowmeter
Pipe size	DN15~DN6000
Accuracy	±1%
Totalizer	7-digit totals for net
Liquid types	Virtually all liquids
Working temperature	Convertor: -20~60°C; Flow Transducer:-30~160°C
Working humidity	Convertor:85%RH; Flow transducer; IP68
Display	4×8 Chinese characters or 4×16 English letters
Power Supply	3 AAA Ni-H built-in batteries. when fully recharged it will last over 10 hours of operation.100V-240VAC for the charger
Case material	ABS
Dimension	100x66x20mm
Handset weight	500g with batteries

Handheld ultrasonic flow meter is suitable for online calibration and patrol detection of liquid flow in various industrial sites. It has the characteristics of high measurement accuracy, simple operation and easy to carry. Its measurement accuracy is very high and is almost not affected by various parameters of the measured medium. In particular, it can solve the problem that other instruments cannot move multiple points to measure flow. It is widely used in scenes and fields such as heating, municipal water supply, and mobile multi-point measurement.

Features of Handheld Ultrasonic Flow Meter:

Easy to install: external clamp-type sensor is used to measure liquid flow. No need to break the pipe, easy to install and simple to operate.
Large measurement range: It can realize flow measurement of pipe diameter DN15-DN6000. (iron pipe, PVC pipe, stainless steel pipe, etc.)
Wide application range: Especially suitable for flow balance test and flow monitoring: drinking water, river water, sea water, cooling water, hot water, industrial sewage, lubricating oil, diesel, fuel oil, chemical liquid, etc.

Selection of Ultrasonic Flow Meter

Type	Specification	Model	Measured Pipe Size	Working temperature	Dimension
Standard Tri-clamp Sensor	Small	TS-2	DN15 – DN100	-30°C~90°C	452532mm
	Middle	TM-1	DN50 – DN700	-30°C~90°C	643944mm
	Large	TL-1	DN300 – DN6000	-30°C~90°C	975453mm
High Tempetaure Tri-clamp Sensor	High temp/Small	TS-2-HT	DN15 – DN100	-30°C~160°C	452532mm
	High temp/Middle	TM-1-HT	DN50 – DN700	-30°C~160°C	643944mm
	High temp/Large	TL-1-HT	DN300 – DN6000	-30°C~160°C	975453mm
Rail way Tri-clamp Sensor	Rail way/Small	HS	DN15 – DN100	-30°C~90°C	3185985mm
	Rail way/Middle	HM	DN50 – DN300	-30°C~90°C	5685985mm
	Rail way/Extended	EB-1	DN300 – DN700	-30°C~90°C	1885949mm
High temperature Rail Tri-clamp Sensor	High temp rail/Small	HS-HT	DN15 – DN100	-30°C~160°C	3185985mm
	High temp rail/Middle	HM-HT	DN50 – DN300	-30°C~160°C	5685985mm
	High temp rail/Large	EB-1-HT	DN300 – DN700	-30°C~160°C	1885949mm
