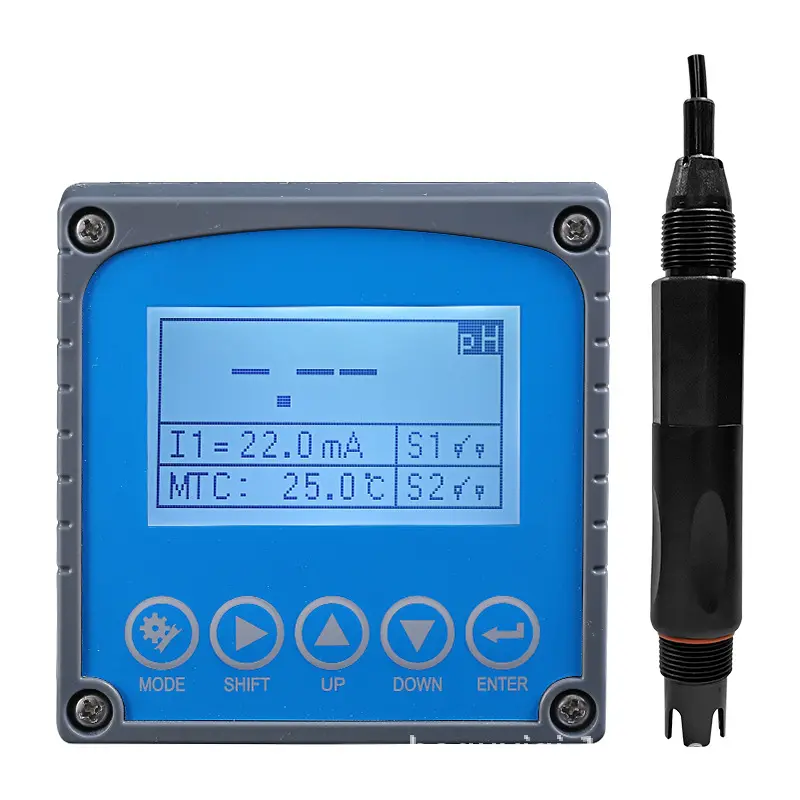

APT13 Inline Industrial PH & ORP Meter

Measure range: pH: 0-14 pH, ±0.02pH; ORP: -1000 ~1000mV, ±1mV

Input Resistance: ≥10~12Ω

Power supply: 220V±10%，50Hz/60Hz

Output: 4-20mA, RS485, Modbus-RTU, Relay

Product Details

Specification

Product	pH meter, pH controller
Model	APT13
Power supply	24V DC, 100~240V AC (optional)
Measure range	pH: 0-14 pH, ±0.02pH
Measure range	ORP: -1000 ~1000mV, ±1mV
Signal output	Two 4-20mA
Relay	Two relays (maximum load: 5A/250VAC or 5A/30VDC)
Installation	Panel mounting
Dimensions	98.2mm×98.2mm×128.3mm
Storage temperature	-40℃～70℃
Relative humidity	≤95%RH (no condensation)
Working temperature	-20℃～50℃
Sensor input	APS12, APS15

Introduction

Inline Industrial PH & ORP Meter is an online pH analyzer which applied in chemical industry metallurgy, environment protection, food, agriculture and so on. With 4-20mA analog signal, RS-485 digital signal and relay output. Can be used for industrial processes and water treatment processes pH control, and support remote data transmission, etc.

Online pH meter is a multivariable analyzer used for measuring/controlling the pH and ORP with different temperature. The function is switchable on the device itself. Depending on the measured variable, combination electrodes (e. g. pH sensors) or split versions (glass electrodes with a separate reference electrode) can be readily connected.

Inline Industrial PH & ORP Meter Features:

Output control: Standard MODBUS RS485 communication; 4-20mA current output; Relay control.
Automation: automatic temperature compensation brightness adjustment backlight setting, support two-point calibration pH/ORP independent switching.
Inline Industrial PH & ORP Meter is suitable for 98% of working conditions, with a variety of fast response and accurate pH sensor;
